MTO Table Import Configure

Configure table to Impot into X4D:

Excel Files uing X4D Data import:

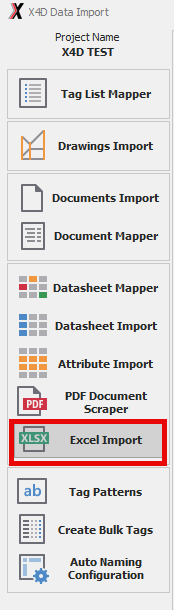

•Excel file can be mapped uing Excel Import option in X4D Data Import Module:

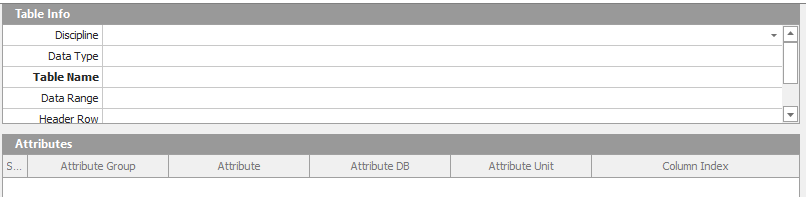

For Easy identification of the Impoted table in X4D, use the following fields:

•Discipline => Selet the Discipline from Dropdown

•Data type => Type of Data for example, PipeMTO, CableMTO, CableTrayMTO etc.

•TableName => i generated automatically, but it can be chnge manully as well

•Data Range =>

•For only Particular rows, use expression like 3-40;80-200;300-500 (separte the value rnges by Semi-Colon)

•ForImporting al Rows, mntion only Top Row Number

•Header Row => Header Row to Select Column name automatically

Save an import => this option saves the current file configuration and Impor th data as well

Save and Import All => This button utomtically Imports Data from ll mapped Excel file

As the new files are received for MTO, the Save and import All rereshes all the data Imported in one command.
