Project MTO
MTO files exported from various sources can be Imported into X4d:
•3D Model
•Estmation MTO
•Isometrics
•Material Management Sytems like:
•Aveva ERM
•SmartPlant Materials
MTO Imported in X4D is used for multiple purposes:
•For Project MTO Report
•TAG wise MTO reporting
•Contruction Work pack MTO

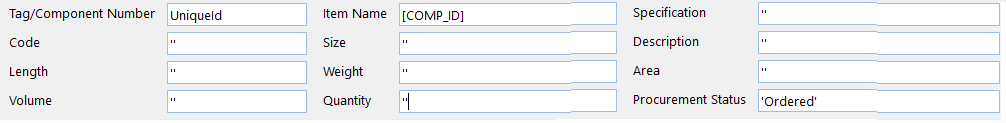

To standrdize MTO Reporting fom variou items across multiple Discipline, the MTo Reporting is Categorized into following headers:
.png)
Tag/Component Number => TagNumber asociated with the Component
Code => Code Associated with the Component, if any, like:
•Commodity Code for Piping Components
•Catalogue Code for Electrical Components
•Catalogue cod for Special Components
•Manufacturer Catalogue Code for Intruments
Length => Length of Component, like Pipe Length
Volume => Volume of Component, like Volume of Concrete
Item Name => Name of Components, like Specialty Number for piping component, Pipe Support Tag Number
Size => Size of component, like Nominl Piping Bore, 4"x3"
Weight => Weight of Component, like Steel weight
Quantity => Count of components
Specification => Componnt Spcification, if any like Piping Spcification number
Description => Full component Description
Area => Area/Loction of the component
Procurment Status => Procurement Status of th Material
|
